Gravel Grids

IBRAN Gravel Grids - the Professionals' Choice.

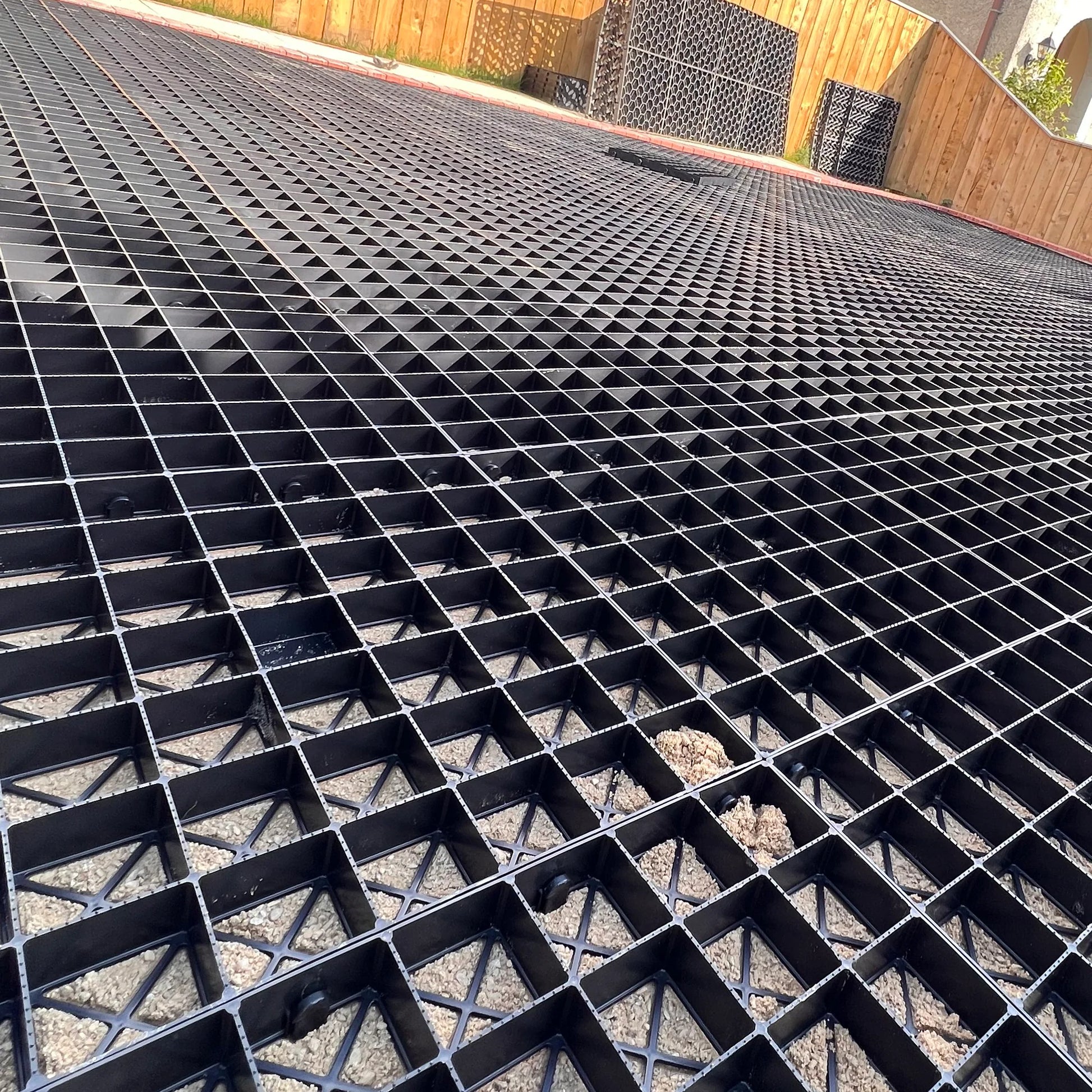

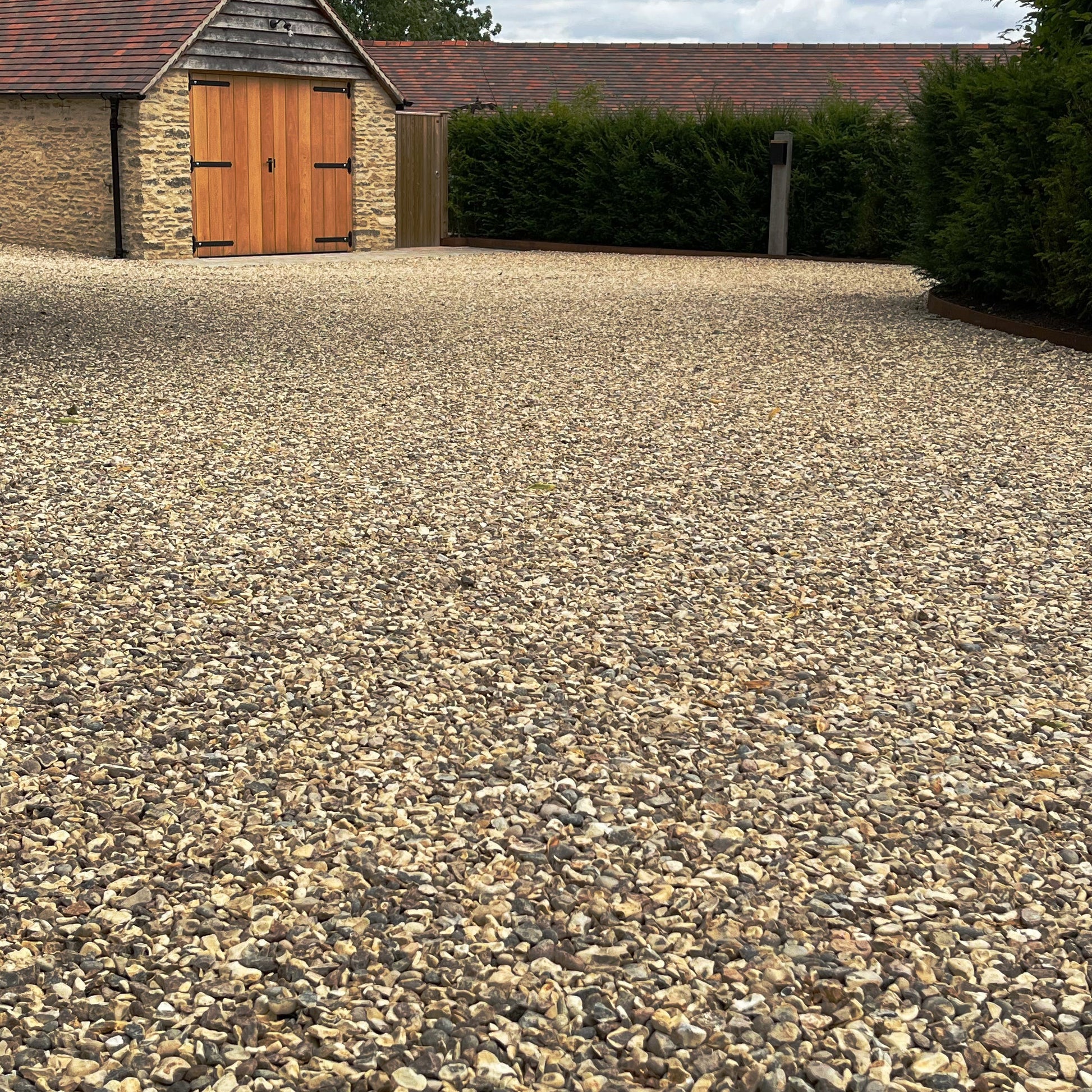

Access unparalleled load capacity and ease and speed of installation. IBRAN gravel grids are your go-to for gravel driveways, parking areas, emergency access roads and other reinforced or stabilised gravel surfaces.

Create a neat, robust surface you can drive any vehicle over. We use only environmentally friendly, 100% recycled plastic (PP+HDPE) to cope with all weather conditions without becoming brittle.

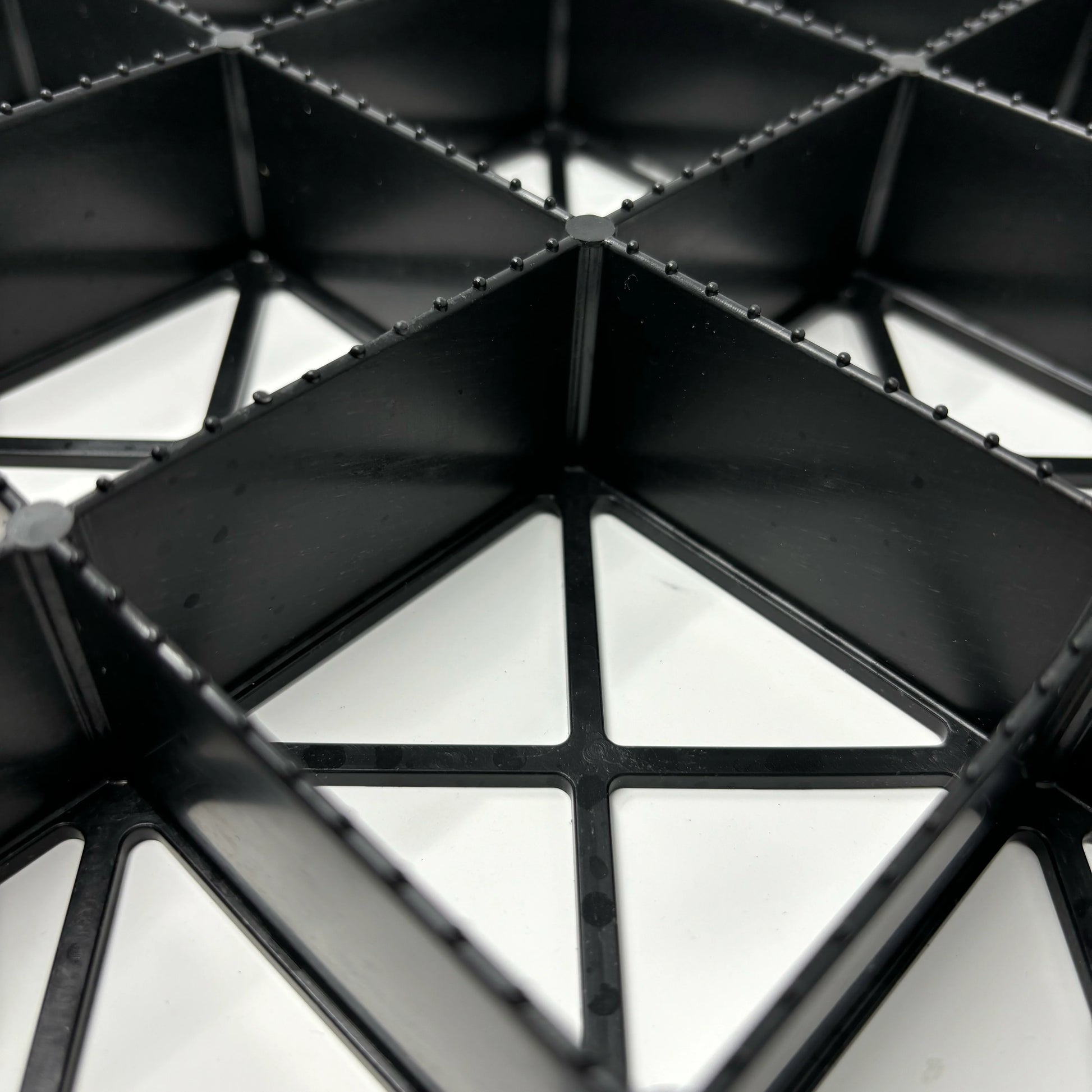

With over 100,000 successful installations and over 10 years of constant improvement, we have refined our gravel retaining grids. In that time we introduced thick, ribbed, 3.5mm cell walls and a new, X-shaped, moulded base lattice that stops stones migrating downwards while restraining the foot of every cell wall, preventing the splaying and collapse that follows when a wall buckles from the bottom up. Grids that replace that mesh with a thin, vulnerable, heat-welded membrane do neither.

Couple it with a speedy, roll-out geotextile beneath, chosen to suit your ground, for the most effective anti gravel migration system in the industry.

The result is a uniquely effective gravel reinforcement mesh system that is extremely durable yet simple to set up. Contractors in markets worldwide are calling these the "best plastic gravel grids they've ever used".

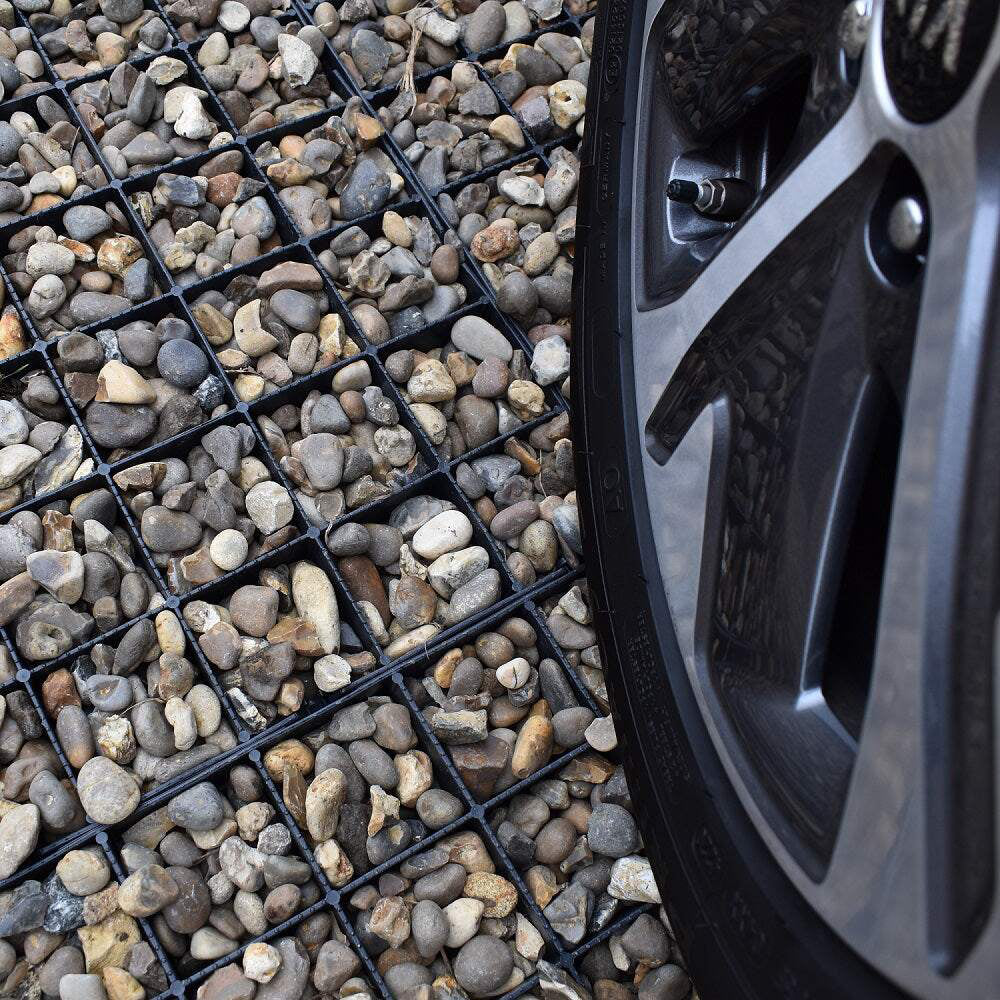

For gravel parking areas, our grid system carries the axle loads you would expect of a bound surface such as concrete or asphalt (25 tonne / 27.5 US ton axle loads). IBRAN gravel mats improve drainage of your stabilised gravel surface, discharging rainwater to the ground quickly and reducing surface water flooding.

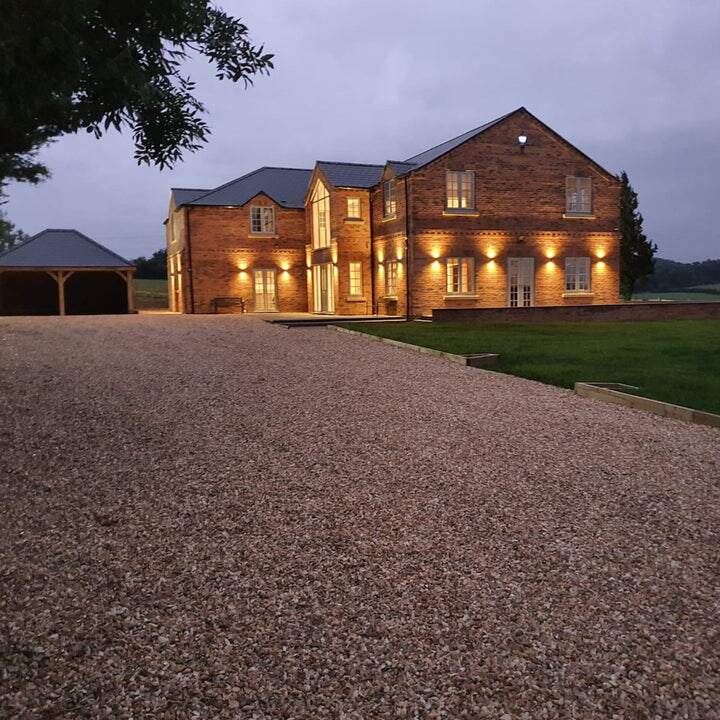

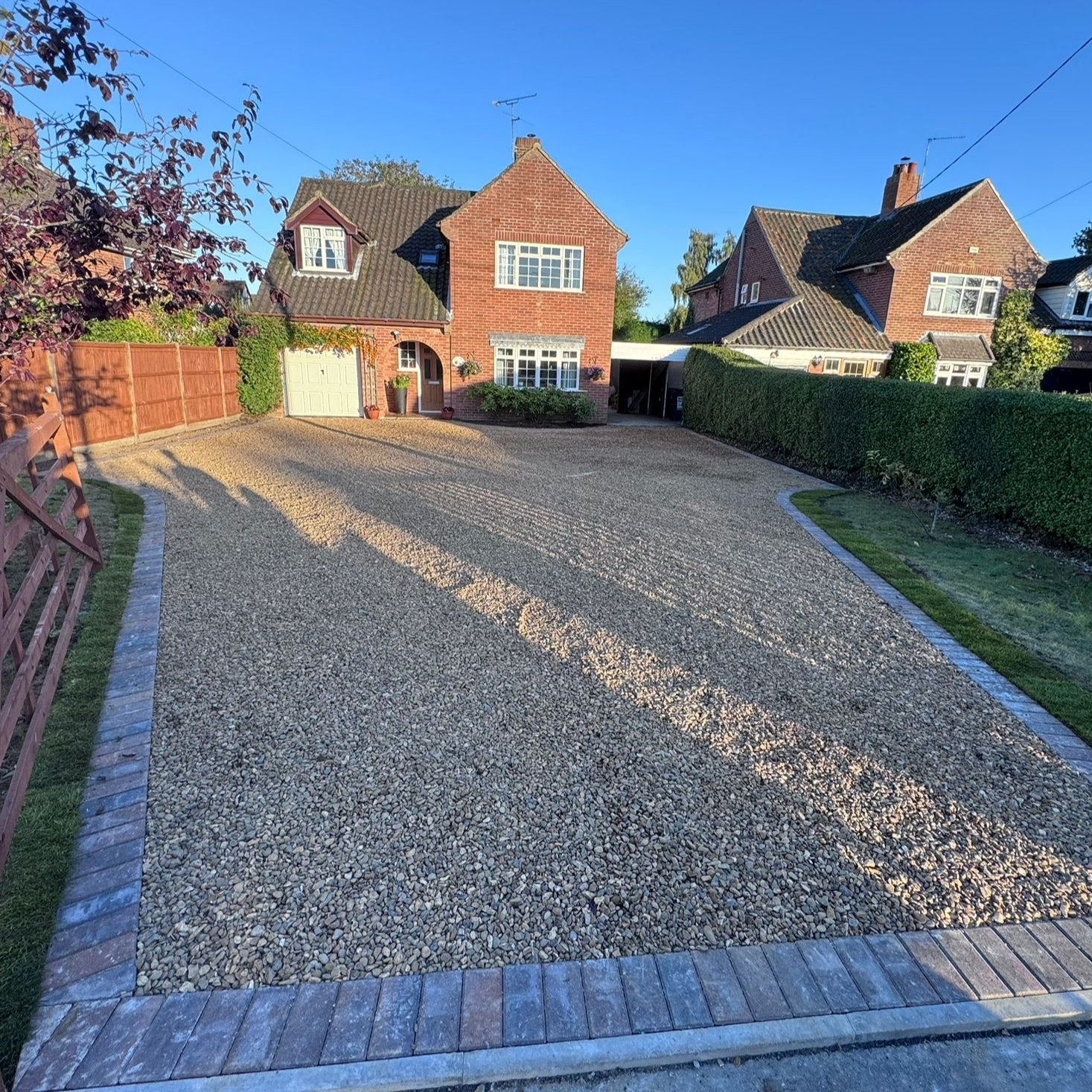

Large enough (4 per square metre / 3.7 per square yard) to make installation quick and easy, small enough to avoid excess waste. Our plastic gravel driveway grid system makes permeable surfacing projects quick and cost effective, on domestic driveways and on larger commercial applications alike. Installed correctly, our gravel grids will stand the test of time.

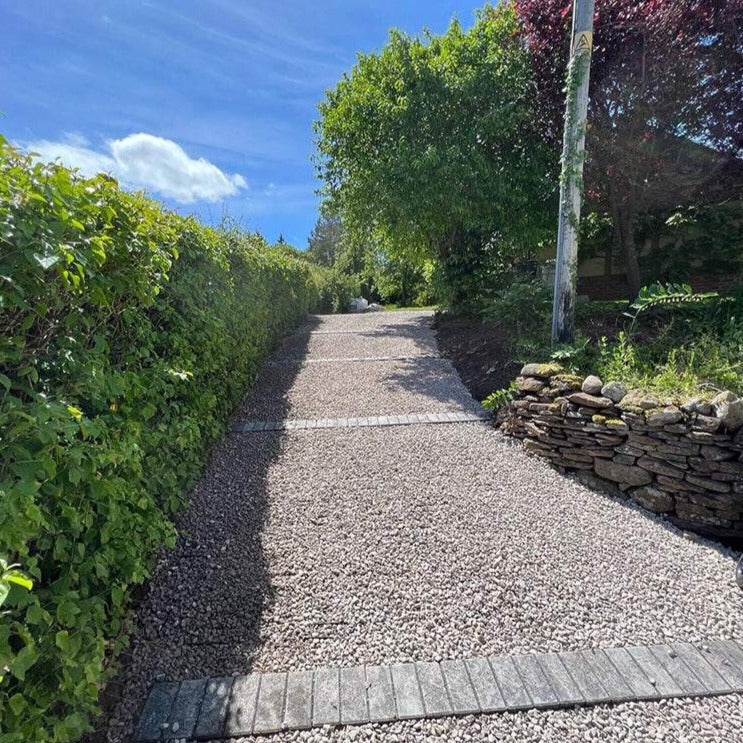

They are the perfect, eco friendly solution for preventing gravel migration, even on slopes of up to 25%.

• Fully permeable: an effective sustainable drainage (SuDS) solution

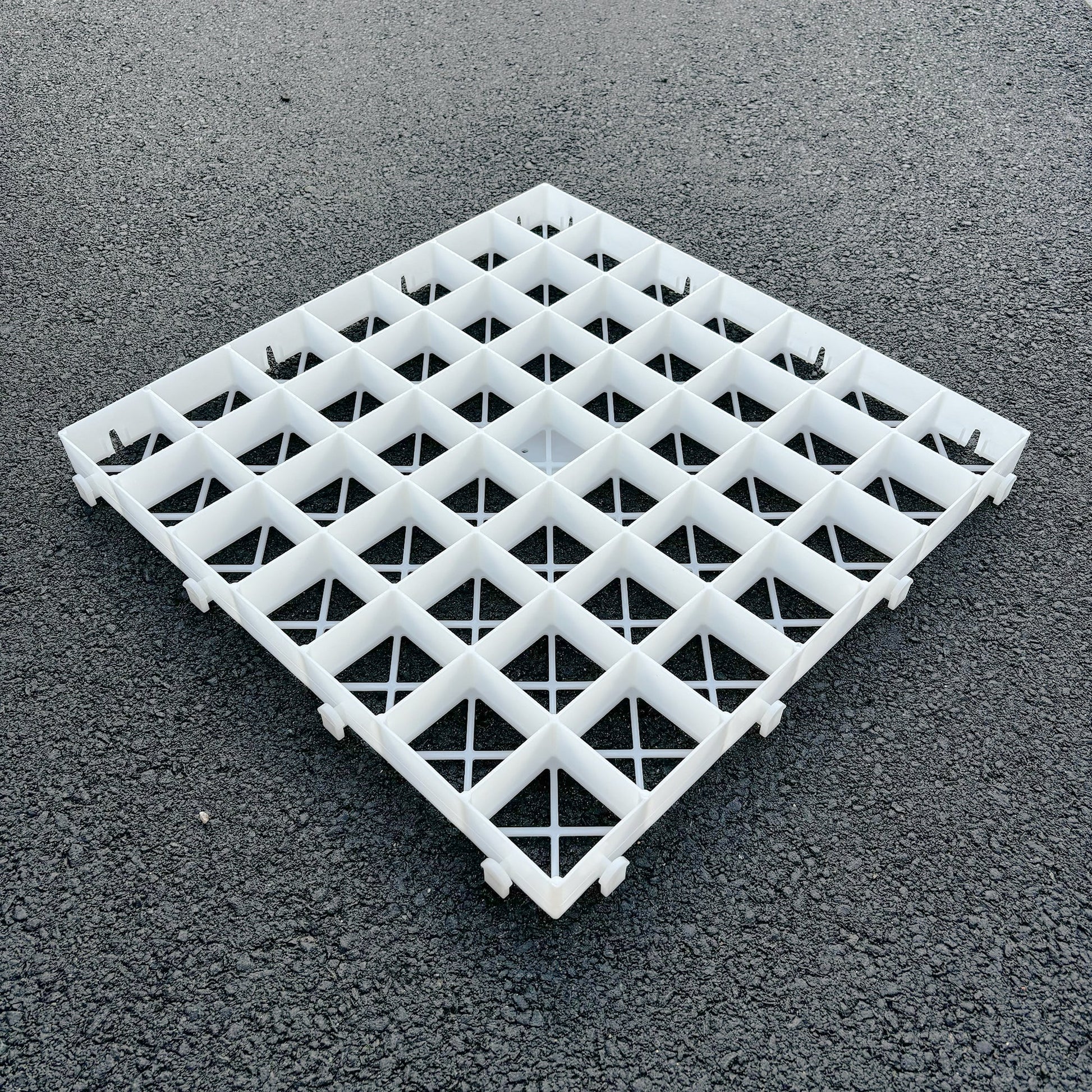

• Covers large areas quickly (500 x 500 x 40mm / 20 x 20 x 1.6in)

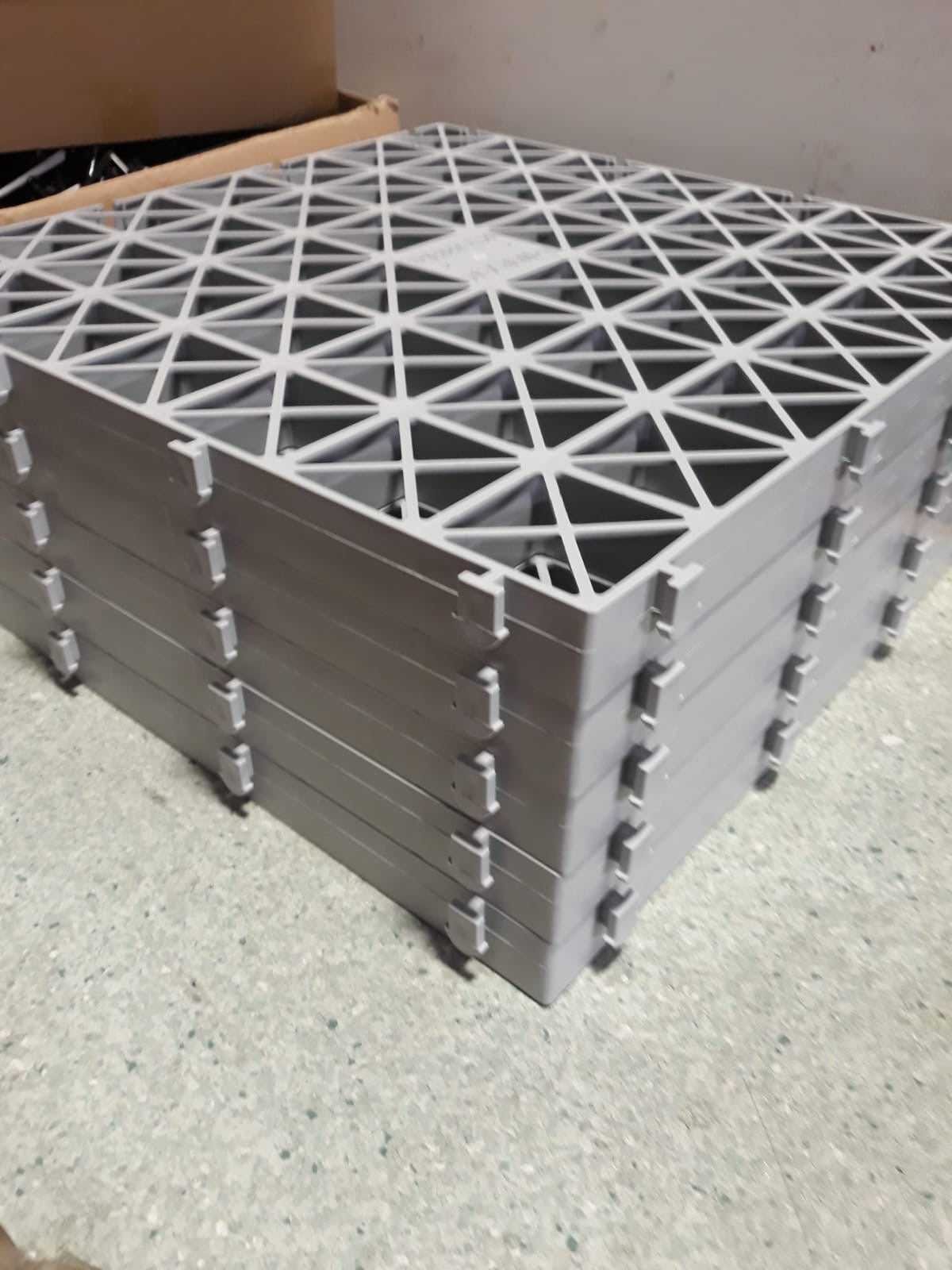

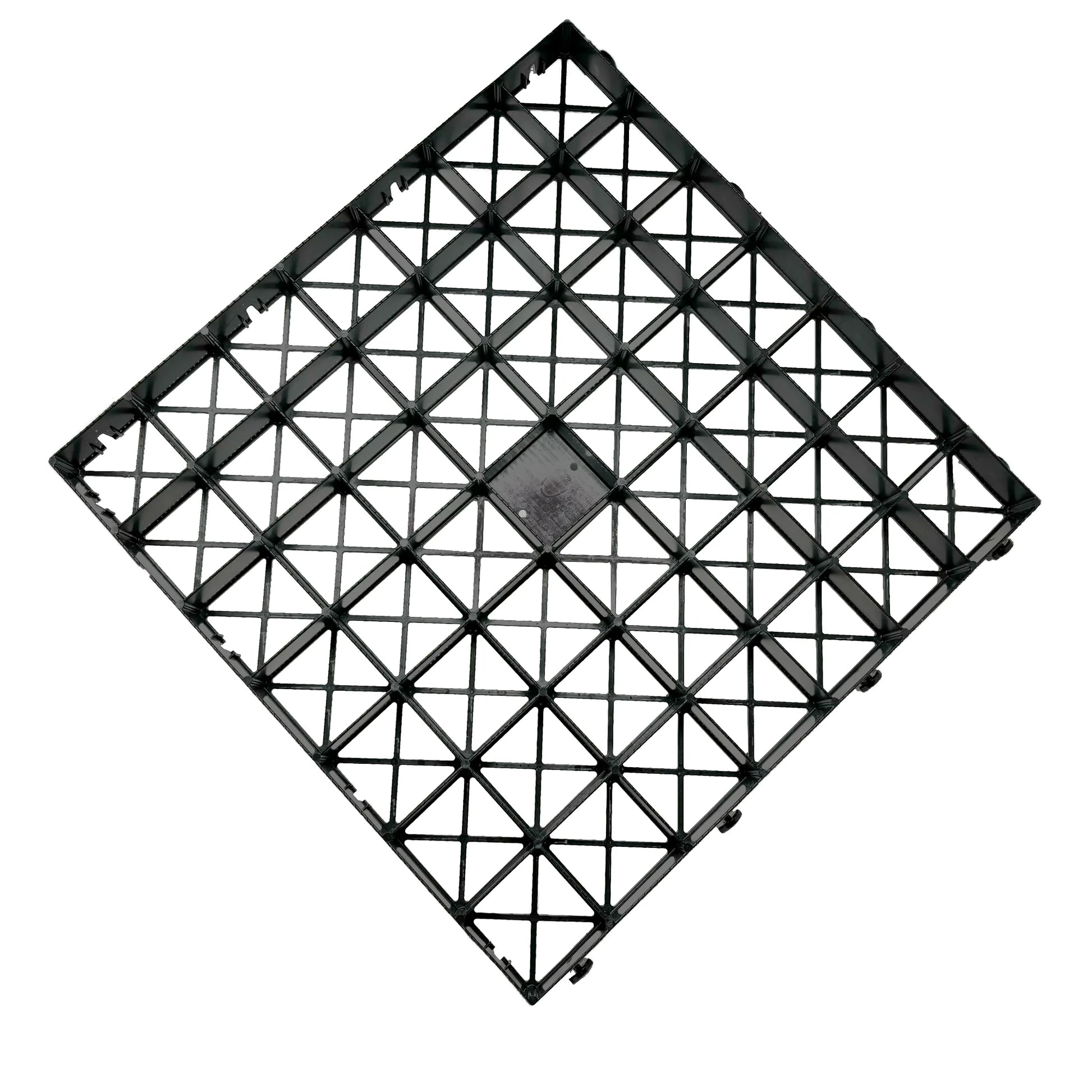

• Moulded X-lattice base: retains aggregate and closes the cell structure under load
• Stabilises 5-35mm (1/4in - 1 3/8in) angular or decorative aggregate
• Rapid, push-fit, interlocking grids for quick installation
• High load capacity: suitable for cars, vans, trucks and emergency vehicles (up to 500 tonnes per square metre)
• Made in-market, in an IBRAN factory, using high quality 100% recycled materials
• UV stable and frost-proof (-50ºC to +90ºC / -58ºF to +194ºF)
• Meets UK Part M accessibility guidance (wheelchair accessible)
• Suitable for a wide range of light to heavy duty domestic and commercial applications
• Long term, 25 year warranty (subject to documented installation - see our installation guide)

Full specifications below.
